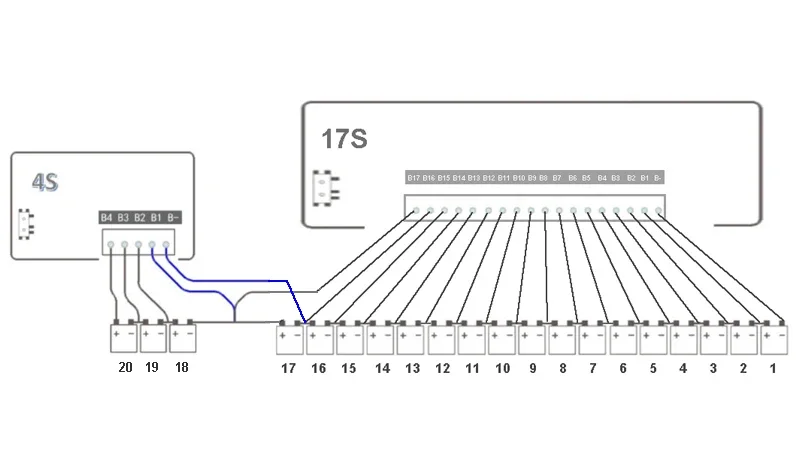

Optimize battery performance and extend lifespan with this innovative Hybrid Battery Equalizer Board. Designed for seamless integration in series reduction or multi-board cascade expansion, this product simplifies complexity by eliminating the need to detect voltage differences between batteries. With enhanced energy transfer capabilities and precise control, it ensures efficient balancing of energy amongst battery cells.

Key Features

• Active Balancing: Utilizes energy transfer between adjacent capacitors, resulting in superior equalization performance.

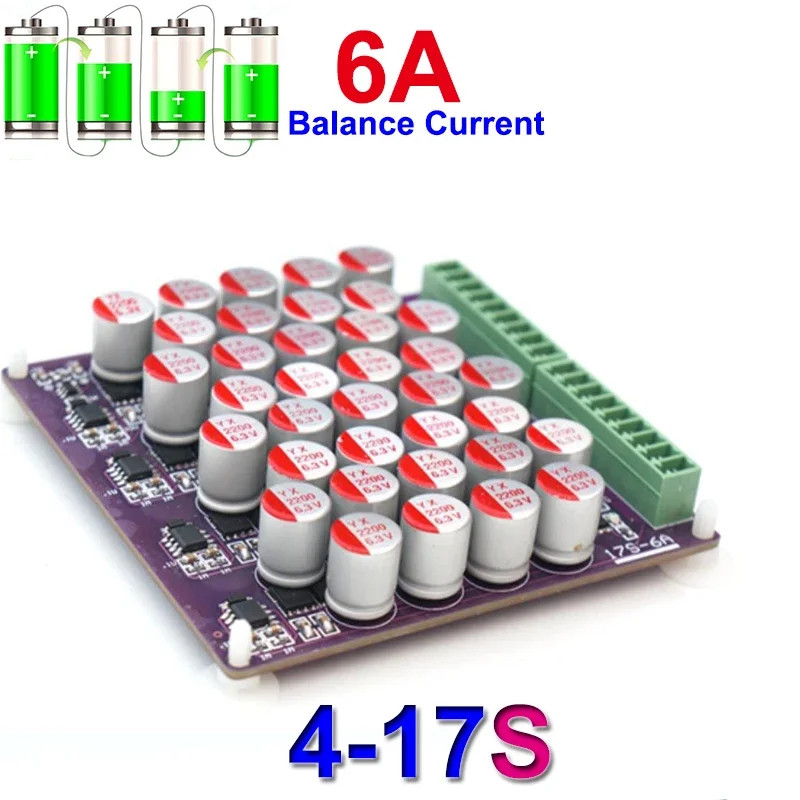

• High Efficiency: Achieves a maximum balance current of 6A, with current increasing relative to voltage differences for optimal energy management.
• Low Power Consumption: Operates at an energy-efficient range of 1.5-2.5mA, minimizing overall circuit power usage.
• Automatic Under Voltage Protection: Safeguards batteries by automatically shutting down when voltage drops below 2.5V, preventing excessive discharge.
• High Equalization Accuracy: Maintains an impressive accuracy of .01V for precise battery management.

Technical Specifications

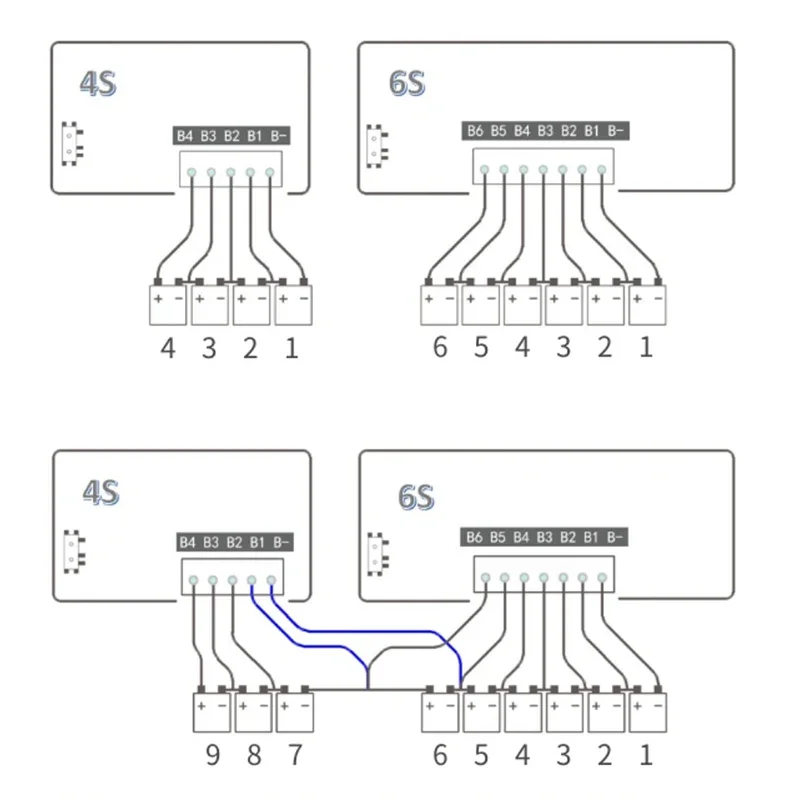

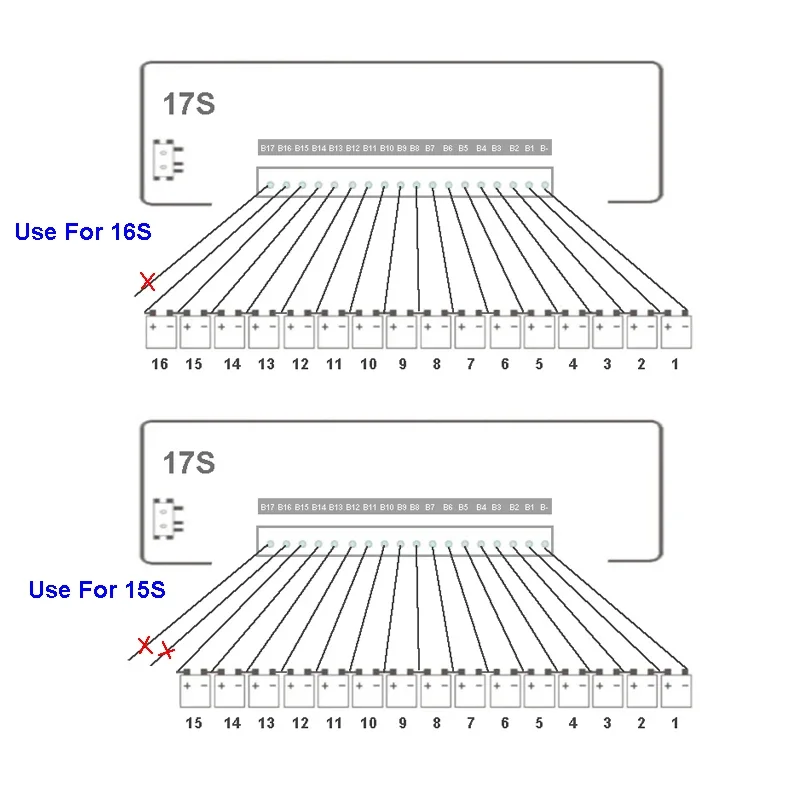

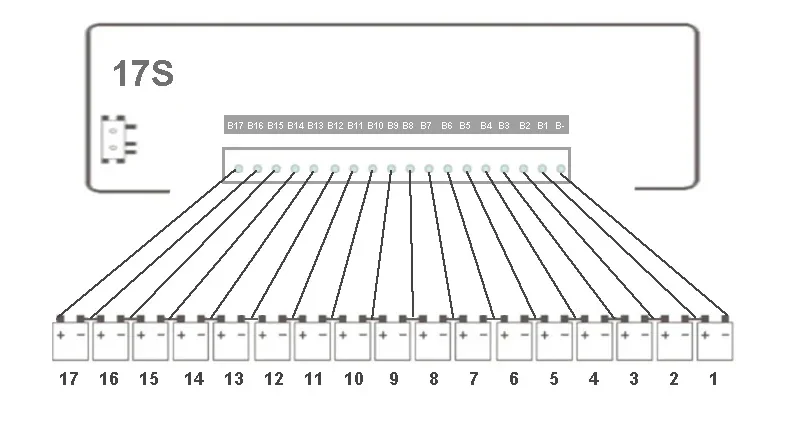

• Model Compatibility: 4S, 6S, 17S configurations
• Balancing Method: Active balancing of energy transfer

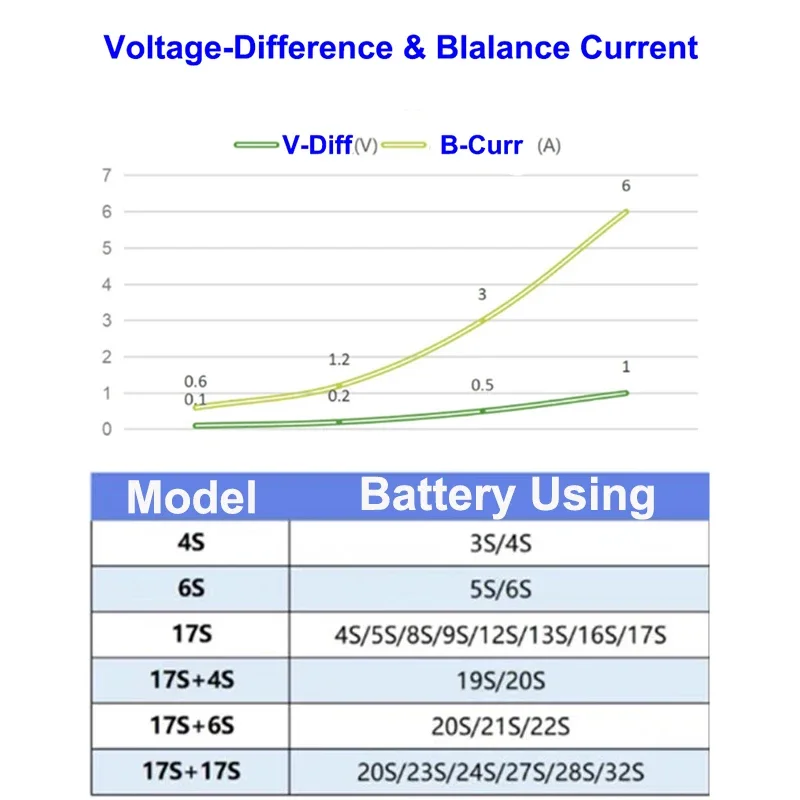

• Maximum Balancing Current: Up to 6A (varies with voltage difference)
• Equalization Accuracy: .01V
• Operating Power Consumption: 1.5mA - 2.5mA
• Under Voltage Protection: Automatic shutdown below 2.5V
• Compatible Battery Types: Ternary lithium, Lithium Ion phosphate, Lithium titanate
• Applicable Voltage Range: Single cell 2.5V - 4.4V

Packing List

• 1 x Battery Active Equalizer Board
• 1 x Cable Plug
• 1 x Connecting Wires

Enhance your battery management system today with this advanced Hybrid Battery Equalizer Board, designed to deliver exceptional performance and reliability for all your energy storage needs.
