The BMS 10S 15A 36V Balanced Protection Board is a robust and reliable solution for safeguarding lithium-ion battery packs, particularly those used in electric bicycles and motorcycles. This board offers comprehensive protection and customization options to meet varying voltage and current requirements.

Key Features:

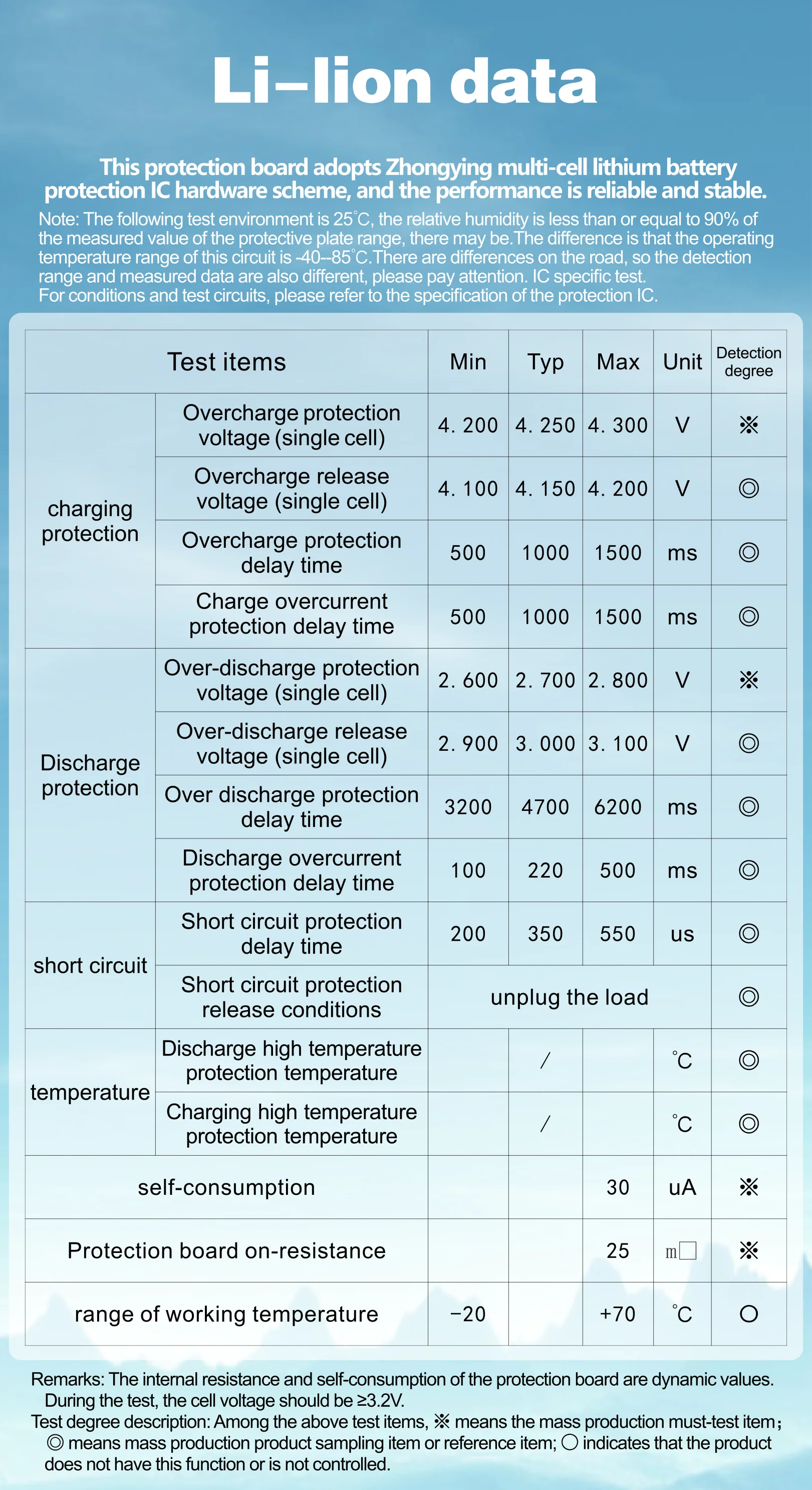

• Provides essential protections: overcharge, over-discharge, overcurrent, short-circuit, and temperature protection.
• Includes voltage balance (passive balance) for maintaining battery health and longevity.
• High-quality construction with a double-sided PCB, anti-corrosion coating, and dual-layer heat dissipation using a silicone sheet and aluminum sheet.
• Customizable for 3S to 24S series with working currents ranging from 5A to 200A.
• Built with top-tier protective integrated circuit IC and high-quality MOSFETs for reliable performance.

Technical Specifications:

• Voltage: 36V
• Working Current: 15A
• Dimensions: 34mm x 60mm x 8mm
• Applicable Battery Types: Lithium-ion (18650, 21700, etc.)
• Nominal Voltage (per cell): 3.6V or 3.7V
• Instantaneous Current: 3 to 5 times the working current

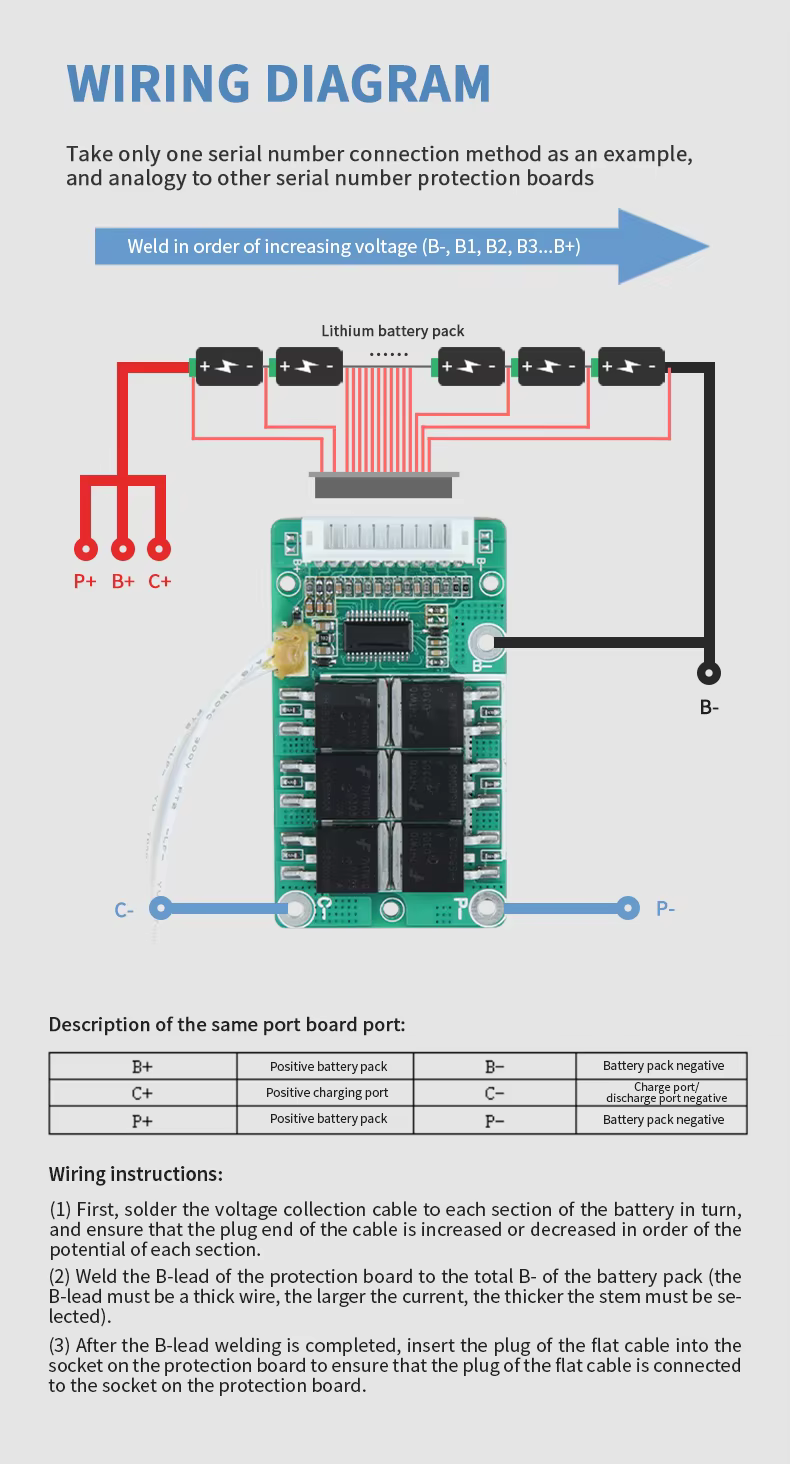

• Ports: B- (total negative electrode), C- (negative electrode for charging), P- (negative electrode of the output)
