This 2P 63A TUYA WiFi Smart Circuit Breaker integrates multiple advanced electrical protection features with remote app control for enhanced safety and energy management. Designed for 230V systems, it safeguards circuits against under-voltage, over-voltage, over-current, and earth leakage faults. With TUYA app compatibility, this device allows for real-time monitoring, configurable delay times, and remote reset. It also functions as a power meter, voltage meter, and ammeter, making it ideal for residential and light commercial applications.

Key Features:

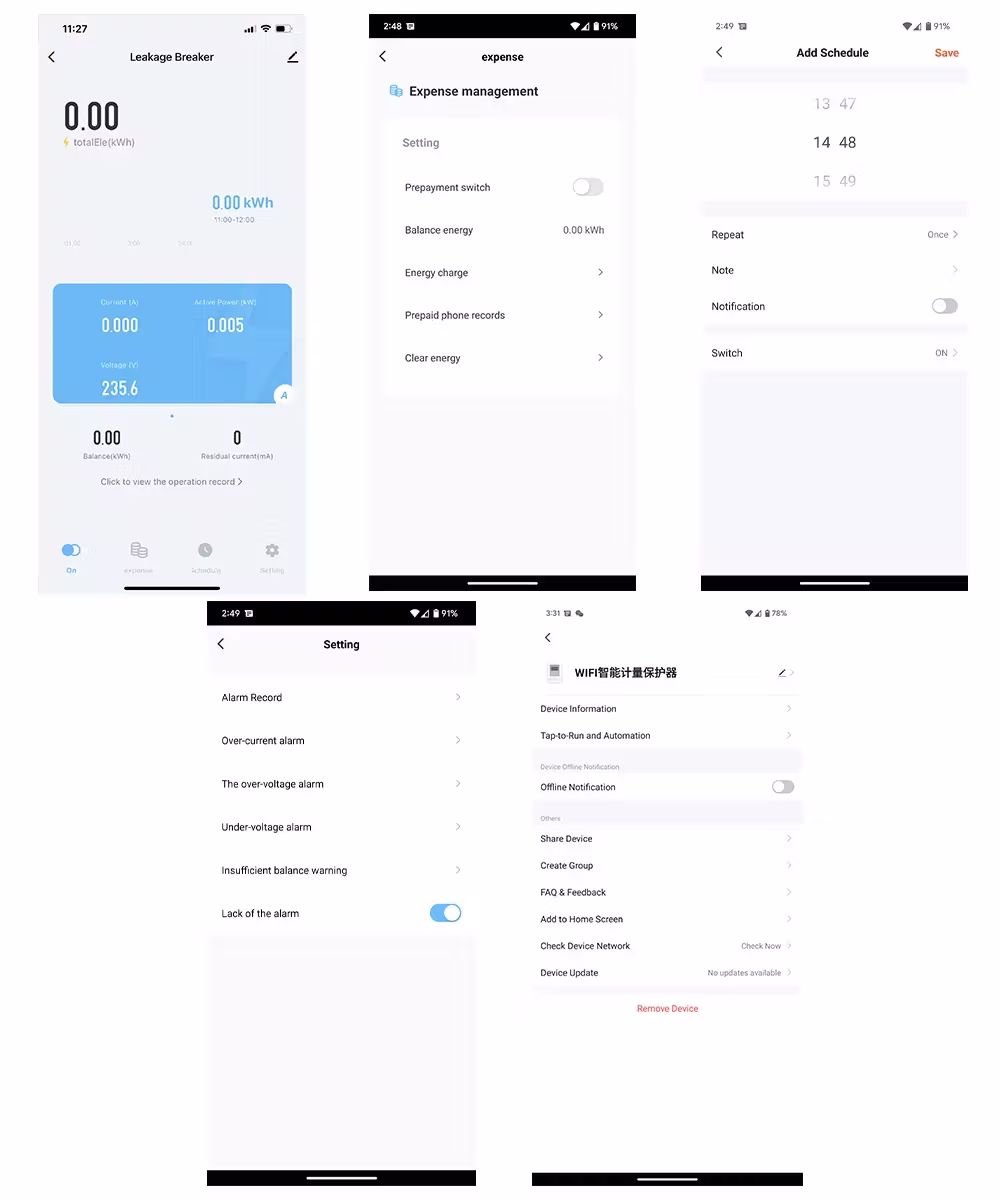

• TUYA WiFi app control with real-time data monitoring
• Adjustable protection thresholds for voltage (90V–300V), current (10A–80A), and leakage (10–99mA)
• Energy consumption monitoring up to 99,999.9kWh
• Memory function retains settings and data after power loss
• Automatic reconnect with configurable delay (5–90s)
• Trip lockout after 3 leakage events to ensure manual safety inspection
• Integrated voltage, current, and power metering

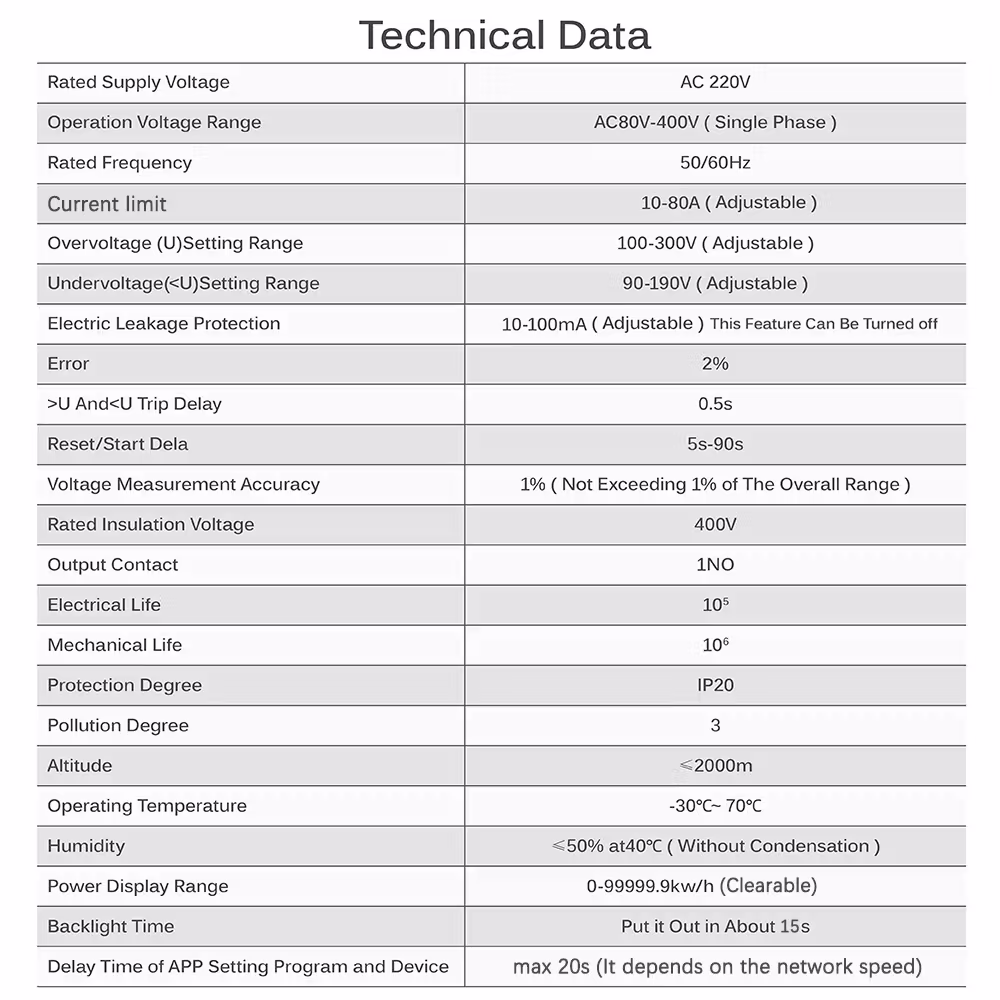

Technical Specifications:

• Rated Voltage: 230V
• Frequency: 50Hz/60Hz
• Under Voltage Protection: 90V–190V (default 170V)
• Over Voltage Protection: 100V–300V (default 270V)
• Over Current Protection: 10A–80A (default 50A)
• Leakage Protection: 10–99mA
• Reconnect Delay: 5s–90s (default 30s)
• Power Display Range: 0–99,999.9kWh
• Energy Record Range: 10–500kWh (default 30kWh)
• App Command Delay: Up to 20s (network dependent)
• Memory Function: Retains KWh, voltage, and current settings after power loss
