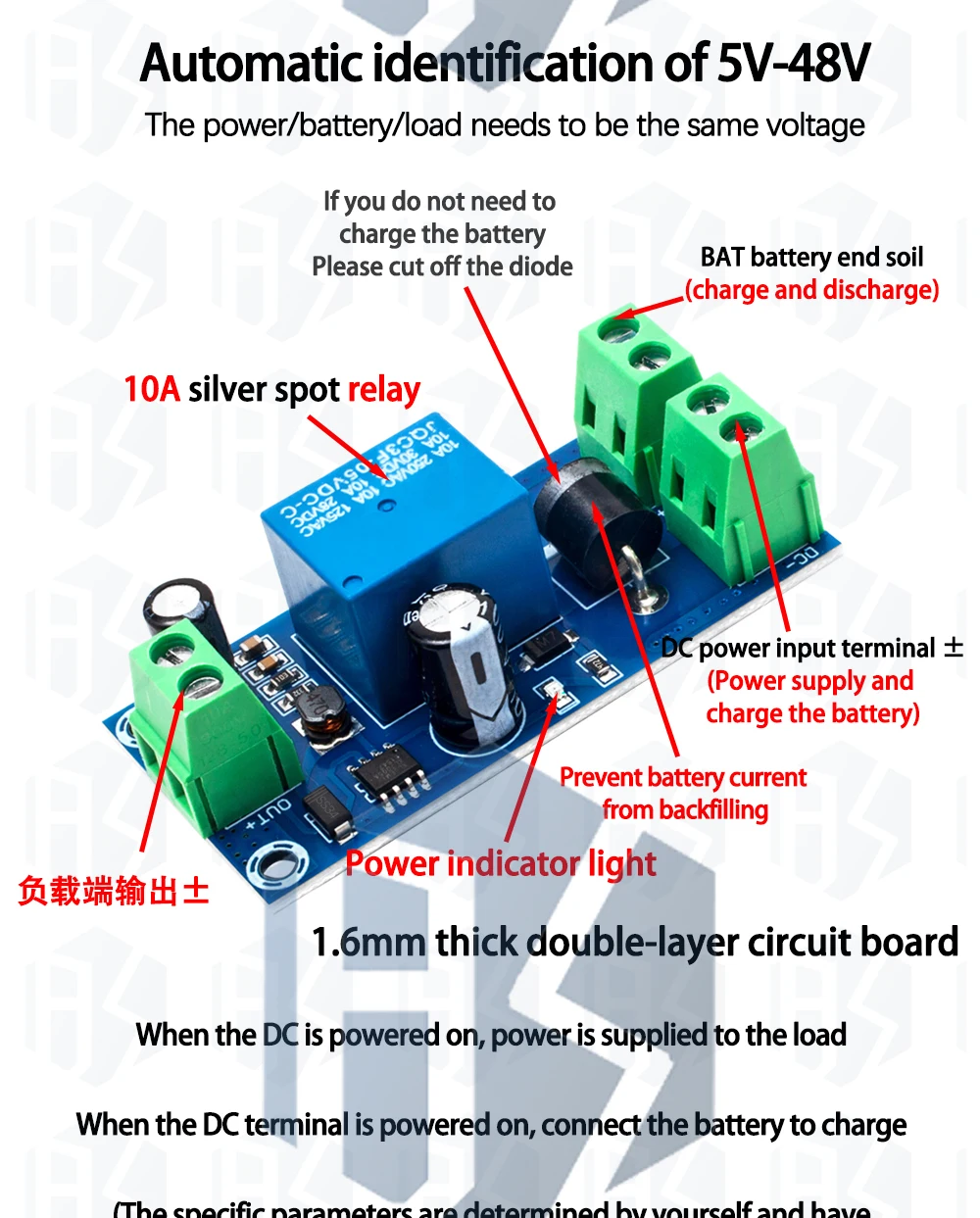

The YX850 Power Failure Automatic Switching Module is designed to provide uninterrupted power supply by automatically switching between power sources in the event of a failure. Suitable for a wide range of applications, this module supports voltages from 5V to 48V, making it a versatile solution for maintaining reliable system operations.

Key Features:

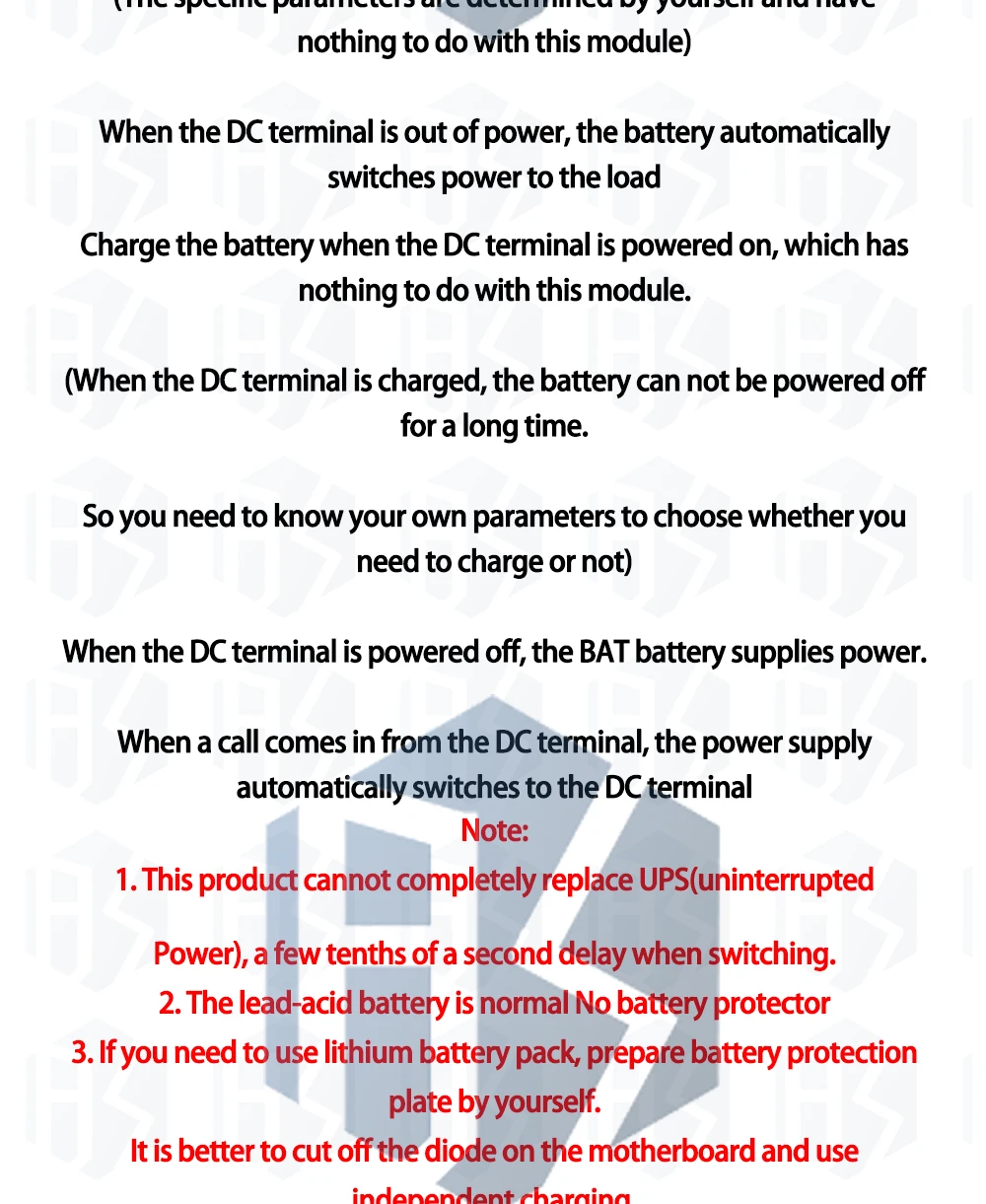

• Automatic power source switching during power failure.
• Compatible with DC voltages ranging from 5V to 48V.
• Compact and lightweight design for easy installation.
• Ideal for protecting systems from power disruptions.

Technical Specifications:

• Product Model: YX850
• Application Range: DC 5V-48V
• Load Capacity: 10A
• Dimensions: 61mm (length) x 30mm (width) x 18mm (height)
• Installation Size: 23mm (2 medium 3mm mounting holes)
• Weight: 22g
